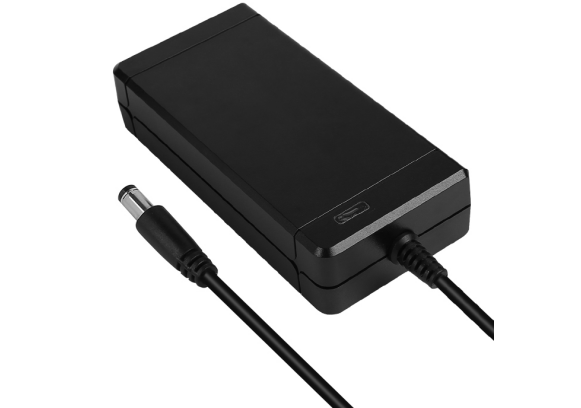

240W Desktop adapter

Model:WT240-XXXYYYY-T

Size:(L)188mm×(W)90mm×(H)48mm

AC plug:Product suffix / plum tail / 8 suffix

Application area:Smart home appliances, LED lamps, security monitoring, audio and video, communications, medical equipment and other products

SERVICE
Related Products: 300W 180W 150W 120W 90W >>More

产品参数 / Product parameters

240W桌面式电源适配器参数介绍:
输入电压: 100-240V 50-60Hz 输入额定电压: 100~240Vac.调整范围/:90-264Vac
输出电压: 5V-48V 输入额定频率: 50/60Hz.调整频率/:47-63Hz
输出功率: 240W 启动时间: ≤3s
冷却方式: 自然冷却 启动冲击电流: ≤30A/240VAC
符合能将: CEC/DOE 输出特点: a>高度精密,低噪音;b>保持时间≥20ms
环保: 符合ROHS REACH 加州65 16P 工作模式: 恒压/恒流
安全标准: IEC/EN60950;IEC/EN60065 认证: CB CE GS UL ETL FCC CCC SAA RCM PSE KC BSMI VI
环境: a>工作温度: 0℃-40℃,5%-90%RH;B>存储温度-20%-85%. 5%-95%RH。”

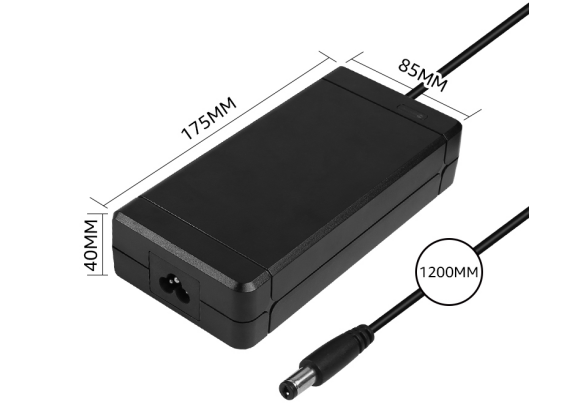

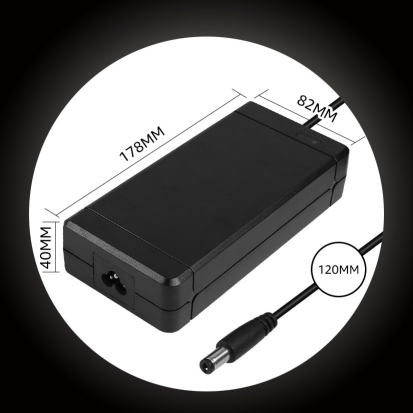

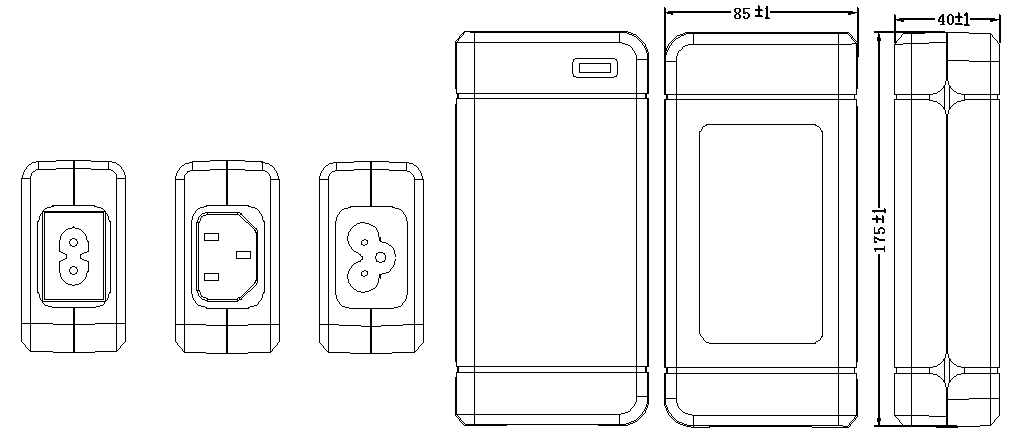

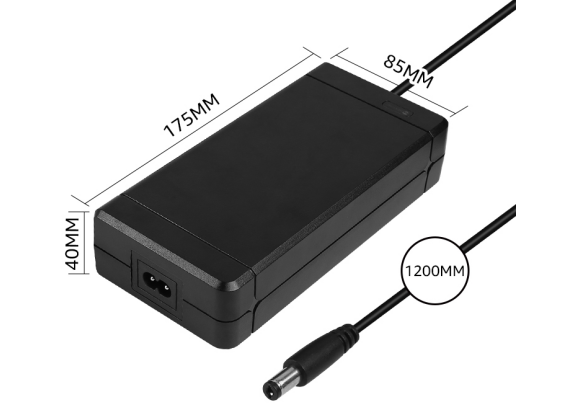

产品尺寸图 / Product parameters

240W桌面式电源适配器产品尺寸

产品细节 / Product parameters

240W桌面式电源适配器

240W桌面式电源适配器产品细节
外壳外壳
符合防火等级、耐高温、抗摔、纯PC材质

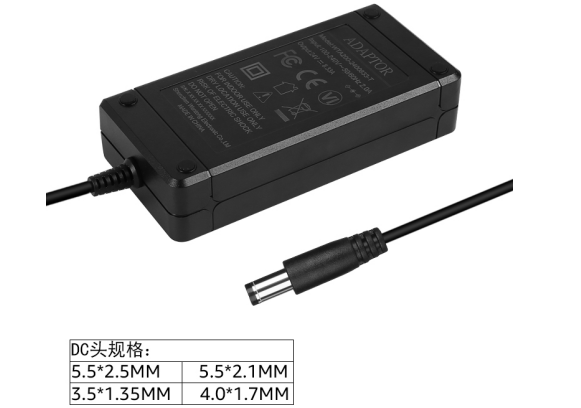

DC头DC头
自主生产、可定制、交货期可管控
AC插座AC插座
符合欧美英澳等各国标准、可变化
变压器变压器
自主设计生产、采用TDK/天通铜等磁芯, 优质纯铜漆包线,双重绝缘线制成
